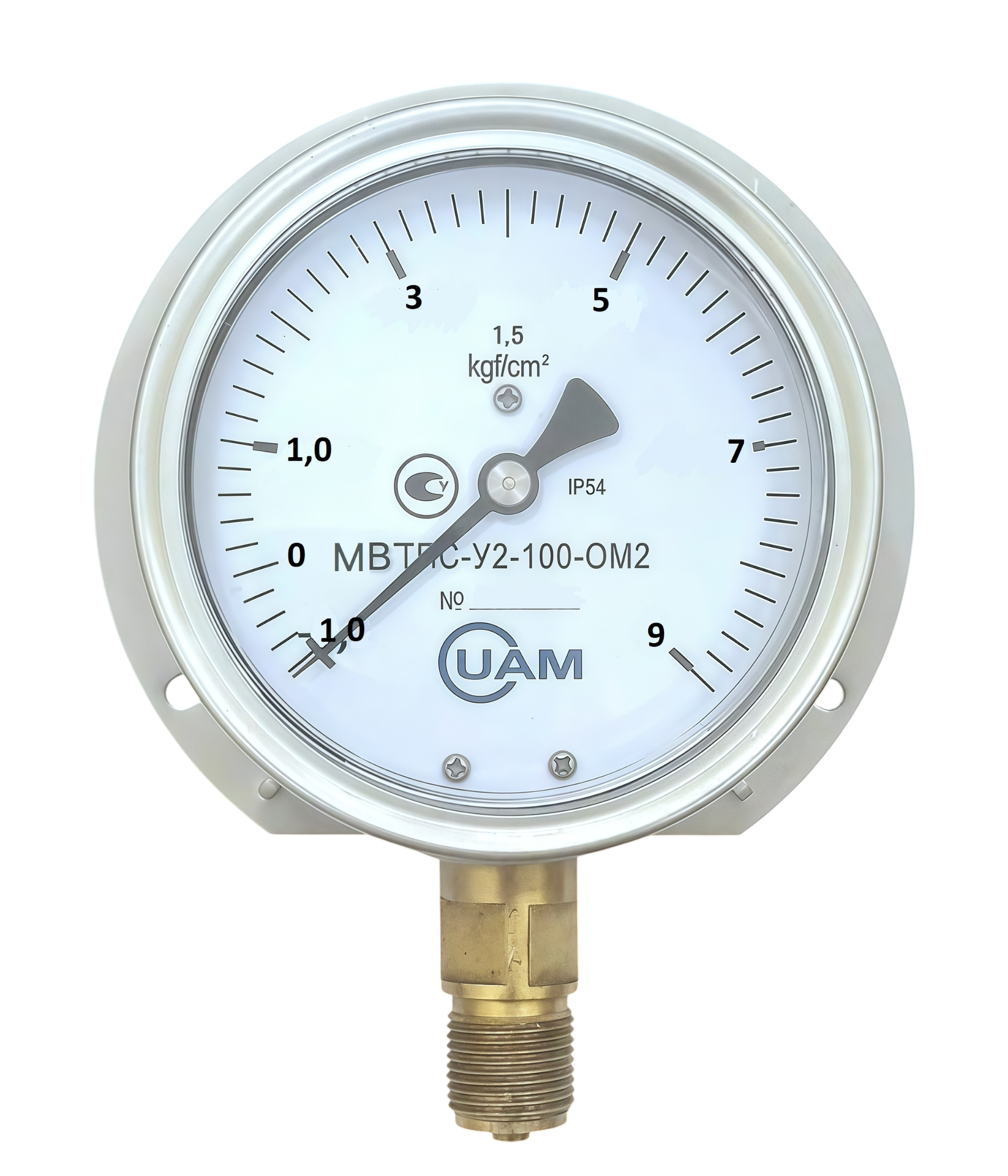

MVTPS-U2-100-ОМ2

Ask the manager for the cost of the product

Designed for measuring overpressure and/or vacuum pressure
non-crystallising, non-viscous, non-aggressive towards copper alloys environments
(liquid and gaseous), including diesel fuel, oil, water, sea water – with a temperature of
up to 150°C, in an environment saturated with vapours of oil, diesel fuel and
sea water.
The devices can be manufactured to measure the pressure of refrigerants as well as oxygen.

This product is currently out of stock and unavailable.

Description

Case material: stainless steel.

Measuring element material: stainless steel, brass.

Glass: organic (safe multilayer glass), technical.

Diameter size, mm

Accuracy class Measuring range, MPa Degree of protection (IP) Thread

Connection

MVTPS-U2-100-OM2

100 1,5

1,0*

From 0 tо  0,06; 0,1; 0,16; 0,25; 0,4; 0,6; 1,0; 1,6; 2,5; 4; 6; 10; 16; 25; 40; 60;100;160 MPа IP54 М20х1,5

Bottom

  * Special version

On request, units of measurement can be ordered in kgs/cm²; bar, atm

The gauges can operate at temperature -50°C to + 60°C

Maximum temperature of the measuring environment up to 150°C

Additional information

Diameter, mm

100

Case material

Stainless steel

Measuring range, MPa

from -0.1 to 0.06, from -0.1 to 0.15, from -0.1 to 0.3, from -0.1 to 0.5, from -0.1 to 0.9, from -0.1 to 1.5, from -0.1 to 2.4

Thread

M20x1,5

Connection

Bottom (Radial)

Degree of protection

IP54
